Spray-Dome +

Spray DOme + sprayer Micron

Micron Weed Management sprayers provide thorough weed control around trees and shrubs, as well as along fences, paths and buildings.

The Spraydome + range of sprayers is ideal for treating weeds in situations where a complete chemical barrier is required. The protective hood completely retains the spray, allowing you to work where chemical contact with the crop is critical, such as in young crops, and also allowing you to work in unfavourable wind conditions.

The adjustable Spray-dome with extendable flaps has been specifically designed to treat weeds growing between the rows of trees. They are particularly suitable for use on almond, pistachio, walnut and other tree crops.

Sprayer suitable for use on almond, pistachio, walnut

The range includes a selection of adjustable models that can spray widths from 1.5m to 4.9m. For larger spacings, Spray-dome or Spray-flex hoods can be added on each side which can increase the working width by up to an additional 2.3m, allowing lanes of 7.2m to be sprayed.

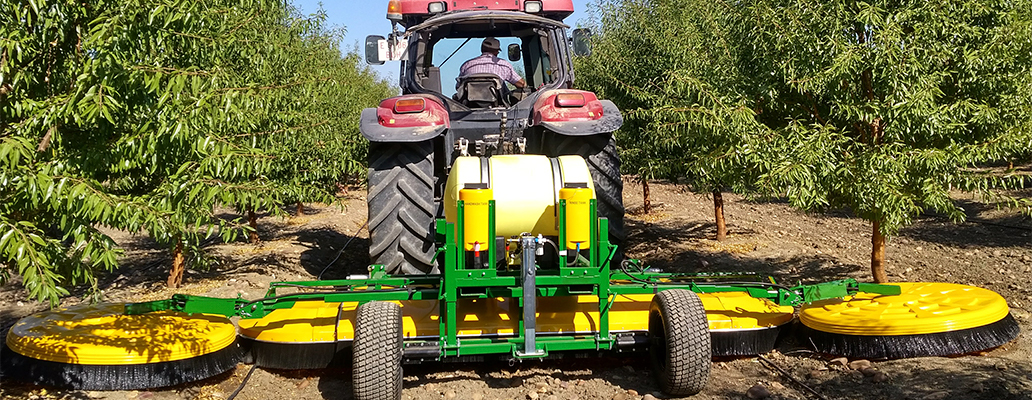

S-dome + 3049 sprayer, with 120cm hoods, working in an almond grove with 6x5m lanes.

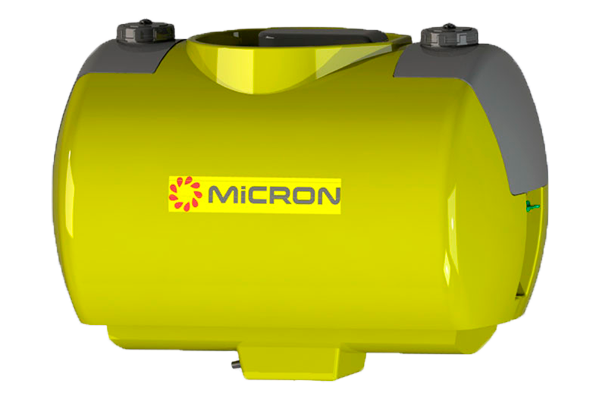

spray dome + Sprayer tank Micron

200L Tank

The complete units are equipped with a tank system consisting of a 240-litre main tank, a 20-litre auxiliary tank for cleaning the machine and a 20-litre hand-washing tank.

The stopcock system allows you to clean the machine after each application without having to empty the main tank. There is also a lance for cleaning the inside of the main tank once it has been emptied.

Thanks to the ultra-low volume technology, a 240-litre tank can provide an operating range of between 8 hectares for narrow frames of 3m, up to 18-20 hectares when treating with the widest frames of 7m.

Control panel

To regulate the flow rate used, the units are equipped with a sturdy control panel with 4 or 6 flow-meters.

Control panel Spraydome + sprayer Micron
Improved hydraulic circuit Spraydome + sprayer Micron

Improved hydraulic circuit

The flow passes through the control panel by means of the equipment's new solenoid valve, which has a membrane to isolate the spring and the shaft from the product being used, avoiding any contamination problems.

Patented motor

Ultimately, the product reaches the spray disc, which rotates driven by Micron's new patented motor. It has a special insulation that prevents the product from coming into contact with the motor so as to prolong the life of the motor.

Patented motor Spraydome sprayer + Micron
Electronics Spraydome + sprayaer Micron


The rotational speed of the disc is controlled by the machine's electronics, thereby ensuring that it remains constant. In addition to this function, the electronics also monitor the correct operation of the motor and the tank pump, notifying you in real time of any malfunctions during the operation via the Landrooter software.

Control unit

The control unit can be used to display the Bluetooth connection, switch the pump and spray heads on and off and also move the actuators. The controls vary depending on the number of heads and actuators.

Control unit Spraydome + sprayer Micron

In action

Learn more about our Spray Dome + sprayer in its operating environment

  • Spray Dome + sprayer for weed control
  • Spray Dome + sprayer for almond, pistachio, walnut
  • Spray Dome + sprayer for tree crops
CDA Technology Micron

With CDA technology

The secret of efficient spraying lies in an even spray droplet size and better liquid coverage on the target.

Invented by Micron, Controlled Droplet Application (CDA) produces only the optimum sizes of spray droplet for the particular application.

Know more

Connect your Micron equipment to LANDROOTER, the software that ensures a precise and correct spray application.

Software landrooter Micron sprayers
